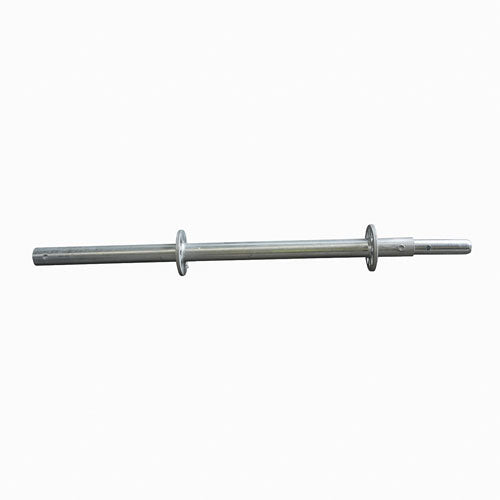

Ringlock Standard (Vertical)

Ringlock Standard (Vertical)

Material: Q355
Standard: EN12811
Surface Treatment: Hot-dip Galvanized
Diameter: 48.3mm
Thickness: 3.2mm
Length: 0.5-3m / Customized

The Ringlock standard, made of high-strength Q355 steel, features 48.3mm diameter steel tube with 3.2mm thickness for excellent load capacity. Welded rosettes every 500mm provide attachment points for horizontal and diagonal bars. Drilled holes on both ends allow secure spigot connections for vertical alignment. Available in lengths from 0.5m to 3.0m, it suits diverse projects, while a hot-dip galvanized finish ensures durability and corrosion resistance.
Request Quote Brochure View full details

Ringlock standard is constructed from Q355 steel, known for its high strength and resilience. The uprights have a diameter of 48.3mm and a thickness of 3.2mm, ensuring optimal load-bearing capacity.
A welded rosette is positioned every 500mm along the vertical standard, providing reliable attachment points for horizontal and diagonal bars.
Both ends of the vertical standard feature precisely drilled holes for bolted spigot. They are connected and secured by nuts to joint two ringlock standard, ensuring uninterrupted vertical alignment.
Available in standard lengths of 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, and 3.0m, it caters to various project needs.
A hot-dip galvanized finish protects the ringlock from corrosion, ensuring a long service life even in challenging environments.

Description
 Length Weight
Millimeter Inch Lb Kg
0.5M Ring Lock Standard Vertical w/Spigot (1-Ring)
 0.5 19.69 6.81 3.09
1.0M Ring Lock Standard Vertical w/Spigot (2-Ring)
 1.0 39.37 12.17 5.52
1.5M Ring Lock Standard Vertical w/Spigot (3-Ring)
 1.5 59.05 17.53 7.95
2.0M Ring Lock Standard Vertical w/Spigot (4-Ring)
 2.0 78.74 22.9 10.38
2.5M Ring Lock Standard Vertical w/Spigot (5-Ring)
 2.5 98.42 28.2 12.80
3.0M Ring Lock Standard Vertical w/Spigot (6-Ring)
 3.0 118.10 33.57 15.23
