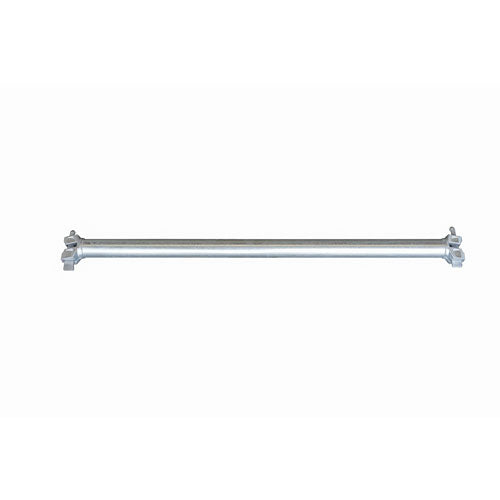

Ringlock Horizontal Ledger O Type
This scaffolding system horizontal ringlock ledger is vital in creating a sturdy and reliable support structure for construction projects. Made from high-quality materials, it provides exceptional strength and stability, ensuring maximum safety for workers. Its ringlock design allows easy assembly and disassembly, making it a convenient and efficient choice for all your scaffolding needs.
Material: Q355 / Q235
Standard: EN12811
Surface Treatment: Hot-dip Galvanized
Diameter: 48.3mm
Thickness: 3.0mm
Length: 0.6-2.5m
Standard: EN12811
Surface Treatment: Hot-dip Galvanized
Diameter: 48.3mm
Thickness: 3.0mm
Length: 0.6-2.5m
Ringlock ledgers, also known as O-ledgers, are horizontal tubes that connect to the standards, forming the scaffold's working platforms and overall structure. These ledgers lock securely into the rosettes on the standards, providing a strong and stable connection. Available in lengths from 0.73m to 3.07m, they offer the flexibility to accommodate any scaffolding project.
| Tube Diameters(mm) | Thickness(mm) | Length(mm) | Surface |
| 48.3 | 3 | 730 | HDG |
| 48.3 | 3 | 1040 | HDG |
| 48.3 | 3 | 1090 | HDG |
| 48.3 | 3 | 1400 | HDG |
| 48.3 | 3 | 1570 | HDG |
| 48.3 | 3 | 2070 | HDG |
| 48.3 | 3 | 2570 | HDG |
| 48.3 | 3 | 3070 | HDG |
